Nexthor Aegis™ Paint Protection Film

Liquid Metallic Aluminium Carbon Fiber Self-Healing Nano-Coated PPF

€2.199,00

Length

15 m 17 m 20 m 30 m

Product variants

Width: 1.52 m

Description

Liquid Metallic Aluminium Carbon Fiber Self-Healing PPF: Futuristic Protection with a Metallic Carbon Finish

This 7.5 mil self-healing paint protection film shields your car's surface from rock chips, scratches, UV damage, and road debris. The Liquid Metallic Aluminium Carbon Fiber finish combines a metallic aluminum tone with a refined carbon fiber texture, creating a futuristic and high-tech appearance. The TPU film absorbs impacts that would otherwise damage factory paint while delivering a sleek metallic carbon-inspired effect across the surface.

SelfRepair™ Technology Erases Minor Damage

Nexthor SelfRepair™ topcoat responds to heat, erasing light scratches and swirl marks within minutes. Park in the sun or rinse with warm water, and the film's surface restores itself to a smooth, flawless finish. This self-healing paint protection film keeps your Liquid Metallic Aluminium Carbon Fiber PPF looking fresh without constant correction or maintenance.

AquaGuard™ Hydrophilic Nano Coating and BondGrip™ Adhesive

The German-engineered AquaGuard™ hydrophilic nano coating spreads water into a thin sheet that carries dirt and contaminants off the surface. This hydrophilic coating keeps your carbon fiber PPF cleaner between washes and requires no reapplication. BondGrip™ adhesive locks the film to your paint with a secure, bubble-free bond. Backed by a 10-year warranty, this Liquid Metallic Aluminium Carbon Fiber paint protection film is built to last.

Order Liquid Metallic Aluminium Carbon Fiber Self-Healing Nano-Coated PPF today and give your car a futuristic metallic carbon-inspired finish with long-lasting protection.

Color & Effect

Liquid Metallic Aluminium Carbon Fiber creates a sleek, futuristic presence with metallic aluminum tones fused into a refined carbon fiber texture. The finish delivers a clean balance between luxury, technology, and motorsport-inspired styling, giving any vehicle a distinctive modern appearance. The surface feels fluid, technical, and visually dynamic from every angle.

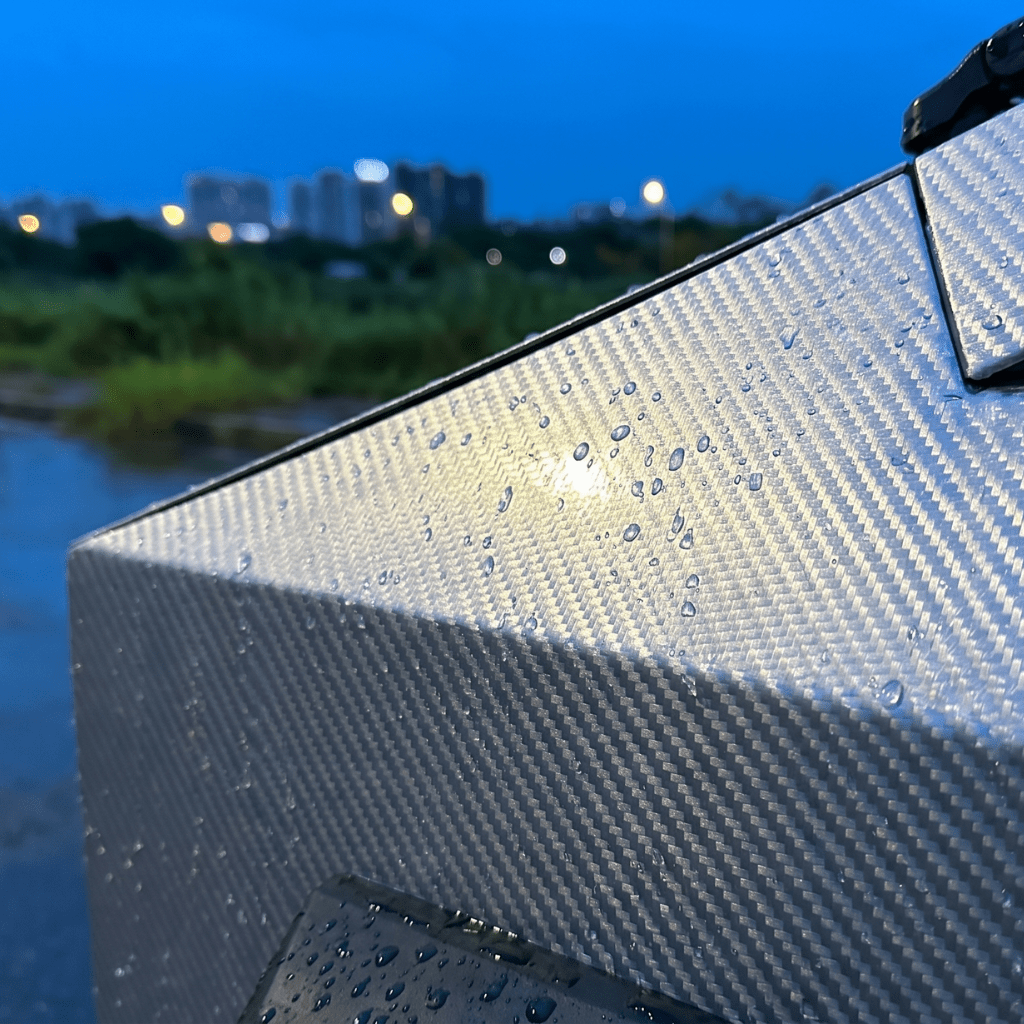

In sunlight, the metallic particles and carbon texture reveal layered reflections and liquid-like movement across the surface. In darker conditions, the finish becomes deeper and more stealthy while maintaining its metallic carbon character. The satin-style finish softens harsh reflections while preserving the texture and dimensional metallic effect.

This is modern automotive design shaped by technology and performance. Liquid Metallic Aluminium Carbon Fiber expresses innovation through texture, sophistication through metallic depth, and exclusivity through a futuristic carbon-inspired aesthetic.

Performance & Protection

Nexthor™ PPF is engineered as a next-generation multilayer aliphatic TPU protection system optimized for impact resistance, optical clarity, and controlled elasticity at optimized thickness.

Multilayer Architecture
Nano-Coating	Hydrophilic surface layer engineered for long-term optical stability.
Self-Healing Topcoat	Heat-activated surface recovery designed for daily-use micro-marring.
Aliphatic TPU Core	High-strength core engineered for impact resistance and stretch stability.
Acrylic PSA Adhesive	Optically clear pressure-sensitive adhesive for controlled tack and edge hold.
Double-Matte Release Liner	Controlled release and dimensional stability during installation.

Core Performance Targets
Optical clarity	Engineered for a clean, distortion-minimized finish under real-world lighting.
Impact resistance	Designed to absorb and disperse stone-strike energy through the TPU core.
Elastic control	Balanced conformability for complex panels with stable shrink behavior.
Hydrophobic top surface	Low surface energy to reduce contamination bonding and improve washability.
Self-repair response	Heat-responsive polymer memory restores surface from light micro-scratches.

Warranty Coverage (Material)
Term	10-year material warranty
Coverage	Yellowing protection · crack & blister coverage · delamination protection · adhesive failure protection

For full measured values and tolerances, use the Technical Specifications tab.

Technical Specifications

Nexthor™ Paint Protection Film – Technical Specifications (AEGIS™ Mk I – 7.5 mil)
Optical & Surface
Gloss (60°)	≥ 94%
Water Contact Angle	≥ 103°
Anti-Fouling	Strongest marker (pass)
Yellowness Index	≤ 2
Mechanical Performance
Tensile Strength	≥ 360 kg/cm²
Elongation at Break	≥ 350%
Peel Strength	≥ 75 N/cm
Shrinkage (MD)	≤ 0.5 mm
Shrinkage (TD)	≤ 0.4 mm
Material Structure
Total Thickness	180 ± 5 μm
TPU Layer Thickness	150 ± 5 μm
Coating Thickness	10 ± 5 μm
Adhesive Thickness	20 ± 5 μm
Liner Thickness	75 ± 5 μm
Layer Thickness	50 ± 5 μm
Finished Weight	375–395 g/m²
Glue Weight	25–30 g/m²
Appearance Quality
Liner Bubbles	Visually invisible
Dust	Visually invisible
Coated Dump	Visually invisible
Glue Line	Visually invisible
Crystal Points (12.7 × 12.7 cm) – 0.1–0.6 mm	Allowed
Crystal Points (12.7 × 12.7 cm) – 0.7–2.9 mm	< 10
Crystal Points (12.7 × 12.7 cm) – ≥ 3.0 mm	1 max
Adhesion System
Adhesive Type	Optically clear acrylic PSA
Tack	≥ 9 N / 25 mm
24h, 180° Peel	≥ 18 N / 25 mm
Release Force	≤ 0.35 N / 25 mm
Thermal Resistance
Maximum Temperature	120°C (≥ 5 min)
Self-Repair Activation Range	60–80°C
Self-Repair Technology
Self-Healing	Heat 75°C, 0.1 mm (Brush & Heat)
Chemical Resistance
Acid & Alkali Resistance	PASS
Anti-Acid	Oxalate 72 (pass)
Storage & Warranty
Recommended Storage	22°C ± 2°C \| 40–60% RH \| store upright in original packaging, away from UV & heat
Shelf Life	12 months (stored upright in original packaging at 15–25°C and ~50% RH)
Material Warranty	10-year material warranty
Warranty Coverage	Yellowing protection, crack & blister coverage, delamination protection, adhesive failure protection

Protection Package

Precision outside. Innovation inside. Structured to maintain film integrity during handling and movement. Designed to reduce unnecessary stress, bending, and surface exposure before application.

Engineered to support stable transport, clean handling, and precise installation conditions.

Application & Installation

Nexthor™ Paint Protection Film is manufactured from premium American and German raw materials and engineered for maximum tensile strength, optical clarity, and controlled elasticity at optimized thickness. Correct installation ensures full adhesive activation, structural integrity, and long-term performance.

Professional Requirements

Installation must be performed in a controlled, dust-free environment using professional-grade tools. Surface contamination, improper slip ratios, or uncontrolled heat application may compromise adhesion performance.

Professional PPF squeegee (multi-hardness)
Precision blade system
Lint-free microfiber system
Distilled water only
Heat control equipment

Installation Methodology

Nexthor™ PPF is designed for precision wet application using controlled alignment, calibrated slip ratios, and structured adhesive activation. The following methodology ensures optimal bonding strength, visual clarity, and long-term durability.

1. Surface Conditioning

Vehicle surface must be fully decontaminated and panel temperature stabilized. Final wipe with isopropyl alcohol solution is mandatory. Surface must be clean, dry, oil-free, and dust-free.

2. Slip Formula

Recommended ratio: 1L distilled water + 2–4 drops pure baby shampoo. Mix gently to maintain low-foam consistency. No conditioners, waxes, or silicone-based additives permitted.

3. Film Positioning

Apply slip solution to both surface and adhesive layer. Position film under controlled tension. Maintain alignment with body lines and structural reference points.

4. Adhesive Activation

Execute center-out squeegee passes with overlapping pressure lines. All fluid must be evacuated to achieve full adhesive contact. Edges must be secured using controlled pressure and temperature. Avoid overheating.

5. Curing Phase

Initial bond stabilization: 24 hours.
Complete adhesive cure: 7–30 days depending on climate conditions.

During curing:
No washing for 48 hours.
No high-pressure exposure for 7 days.
Temporary moisture pockets may appear and will dissipate naturally.

Maintenance & Care

Nexthor™ PPF incorporates advanced self-healing elastomer technology activated by thermal energy. Wash with pH-neutral automotive shampoo only. Avoid abrasive tools and aggressive chemical exposure. Professional installation is strongly recommended for complex geometries and high-tension panels.

For the complete step-by-step documentation, technical notes, and extended installer guidance, please review the full Installation Guide:
View Full Nexthor™ Installation Guide

Nexthor™ | SKU: S-05-15m
